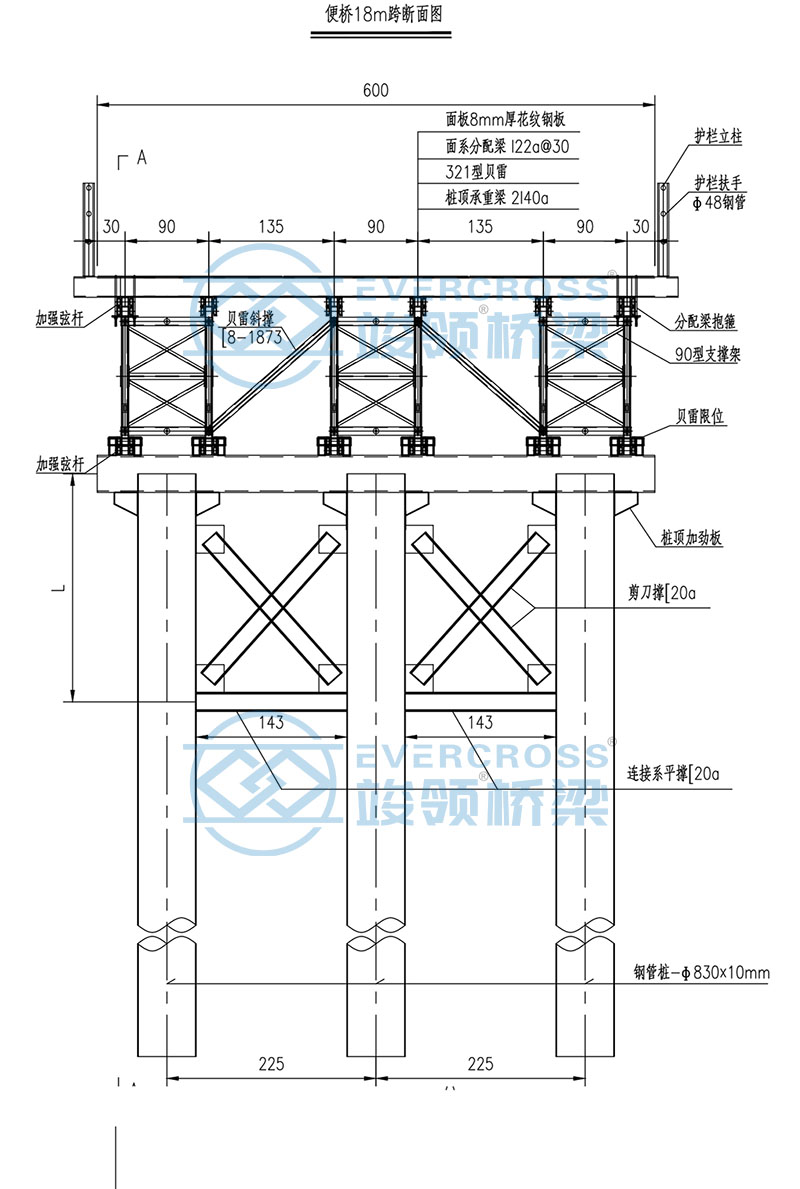

Introduction of Bailey Type Trestle Bridge And Platform
The Bailey platform is an important component of the overall Bailey bridge design. Here's a closer look at what it entails:
The Bailey Platform:
The Bailey platform refers to the horizontal deck or surface of the Bailey bridge that vehicles and pedestrians traverse.
It is constructed using the individual "chesses" - the wooden or steel planks that are laid across the transom beams of the pier structure.
The construction technology principle of the bailey platform is to assemble the frame which is composed of connectors and steel pipes , and fix it in a suitable position to form a stable support system.
The chesses are positioned perpendicular to the transom beams, creating a solid, continuous deck.
This platform can support the weight of heavy military vehicles, tanks, artillery, and other loads.
When the land and water transportation on both sides of the bridge can not meet the construction and transportation requirements in the mountain area, the construction bridge should be built. The construction bridge generally has the characteristics of simple structure and low cost, but it should be safe and firm to meet the requirements of engineering construction and transportation.
During the construction process, the appropriate height and position of the support are determined according to the actual situation, and corresponding measures are taken to support and fix.
Features of Bailey Type Trestle Bridge And Platform
Ease of Maintenance:
The modular design of the Bailey platform allows for easy inspection, repair, and maintenance of individual components.
This helps ensure the continued reliability and operational readiness of the bridge, even in challenging field conditions.
The Bailey platform's unique features, such as its modular construction, rapid assembly, versatility, and reusability, made it a highly valuable and widely-used temporary bridge solution, particularly during military operations and emergency infrastructure projects.
Applications of Bailey Type Trestle Bridge And Platform
Construction and Infrastructure:
Used as a temporary working platform for construction projects, such as building new bridges or repairing existing ones.
Provides a stable, elevated surface for workers, equipment, and materials during the construction process.
